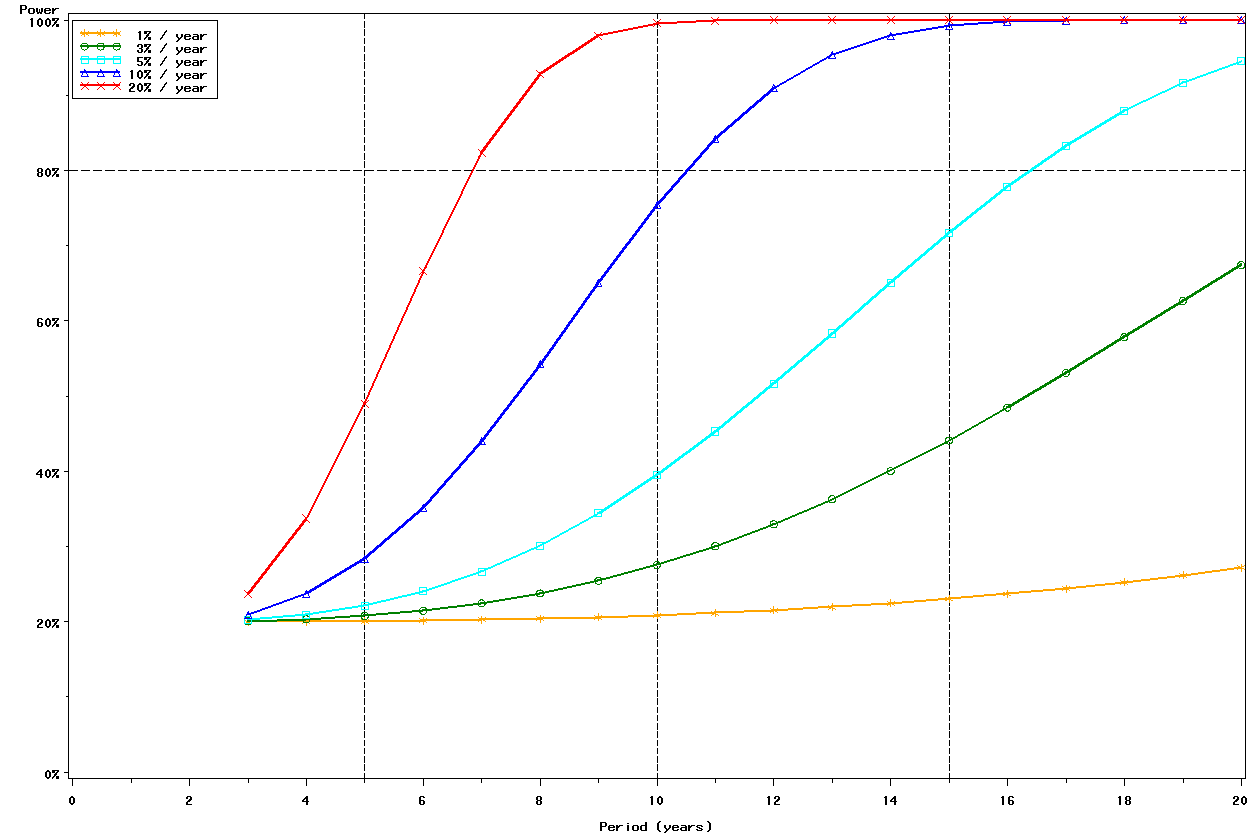

Figure 4a: Estimated power to detect temporal trends in bluegill catch-per-unit effort in Pool 8 in all sampled strata (backwater, main channel border, wing dam, side channel strata) under current sampling intensity (historical median n = 96). Trends assumed exponential. CPUE represents mean catch per 15 minutes effort. Estimates based on design-based, across-episode annual means.
Dot gov

The .gov means it’s official.
Federal government websites often end in .gov or .mil. Before sharing sensitive information, make sure you’re on a federal government site.

Https

The site is secure.
The https:// ensures that you are connecting to the official website and that any information you provide is encrypted and transmitted securely.

Estimating power to detect temporal trends in LTRM metrics

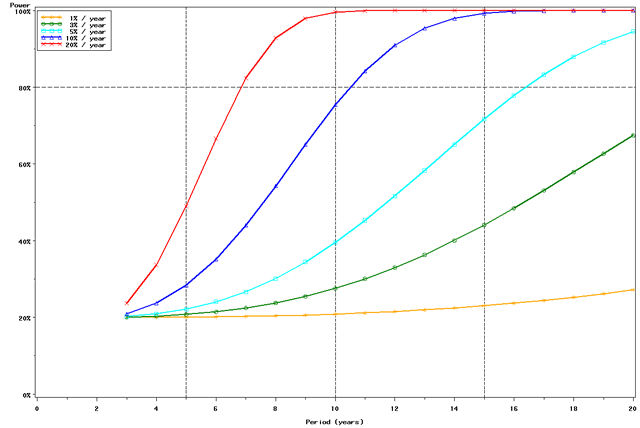

legendFigure 4a: Estimated power to detect temporal trends in bluegill (Lepomis macrochirus) catch-per-unit effort (CPUE) in Pool 8 in all sampled strata (backwater, main channel border, wing dam, side channel strata) under the present sampling intensity (historical median n = 96). Trends assumed exponential. The CPUE represents mean catch per 15-min effort. Estimates based on design-based, across-episode annual means.

larger scale

Figure 4a

Disclaimer: This information is provided to help better inform ongoing LTRM partner discussions. The power plots are generated from small sample sizes; all plots should be treated as approximate.

Contact: Questions or comments may be directed to Brian Gray, LTRM statistician, Upper Midwest Environmental Sciences Center, La Crosse, Wisconsin, at brgray@usgs.gov.
