Upper Midwest Environmental Sciences Center
Summary of Monitoring Findings for Fiscal Year 2005

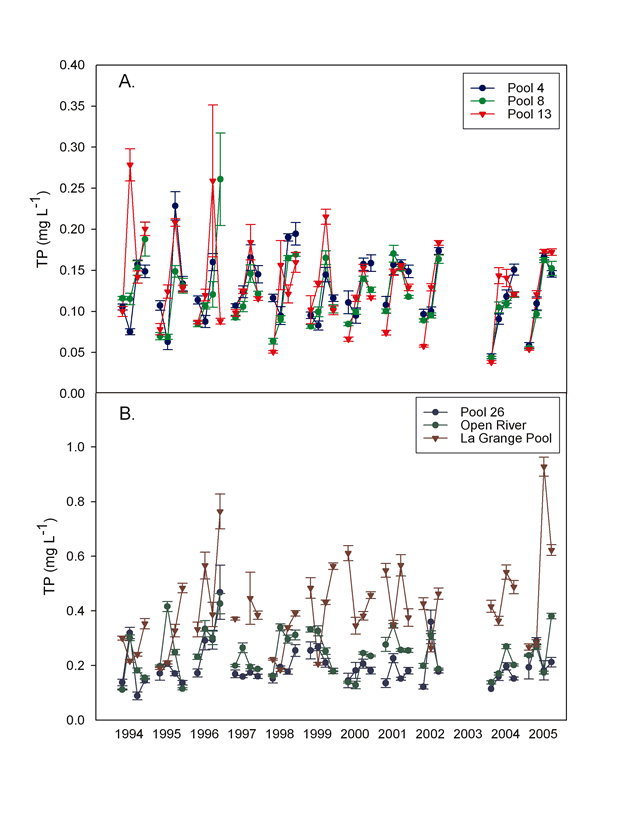

Figures| Figure 4. | Total phosphorus (TP) concentrations in the main channel stratum of the six Long Term Resource Monitoring Program study reaches from 1994 to 2005. Data points are means from stratified random sampling episodes for winter, spring, summer, and fall. Error bars are one standard error. No data were collected in 2003. |
 |
|
