Vegetation - Stratified Random Sampling 2002

Figure 12. Sites where species were recorded in Pool 13, Upper Mississippi River System, 2002.

Image Preview
Figure - Description
Sites where species were recorded in Pool 13

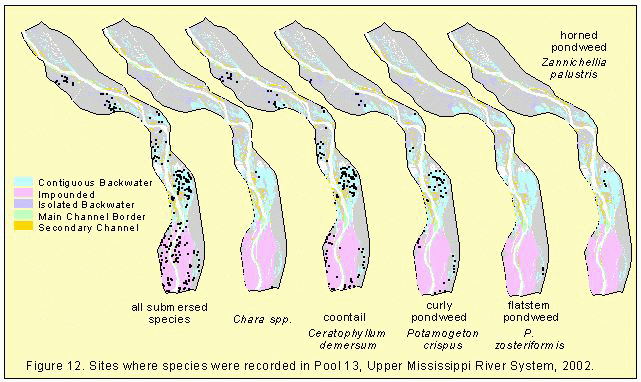

 Figure 12. Species: all submersed species, Chara spp., coontail (Ceratophyllum demersum), curly pondweed (Potamogeton crispus), flatstem pondweed (P. zosteriformis), and horned pondweed (Zannichellia palustris).
Sites where species were recorded in Pool 13

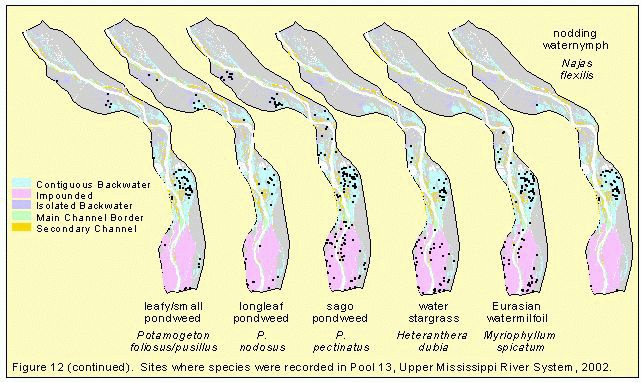

 Figure 12. Continued.  Species: leafy/small pondweed (Potamogeton foliosus/pusillus), longleaf pondweed (P. nodosus), sago pondweed (P. pectinatus), water stargrass (Heteranthera dubia), Eurasian watermilfoil (Myriophyllum spicatum), and nodding waternymph (Najas flexilis).
Sites where species were recorded in Pool 13

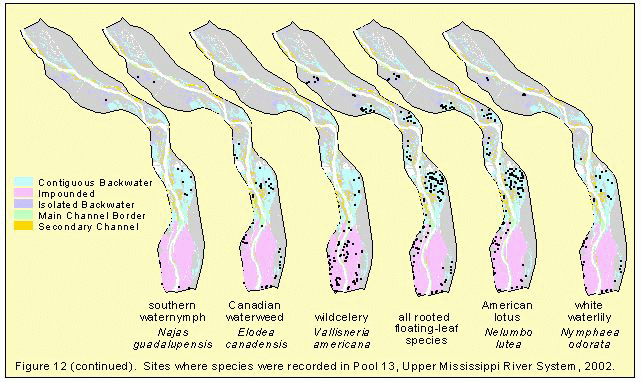

 Figure 12. Continued. Species: southern waternymph (Najas guadalupensis), Canadian waterweed (Elodea canadensis), wildcelery (Vallisneria americana), all rooted floating–leaf species, American lotus (Nelumbo lutea), and white waterlily (Nymphaea odorata).
